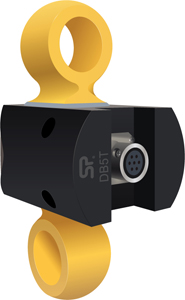

Tension Load Cell - Low Headroom Link

Straightpoint introduces its range of low headroom links designed to provide accurate measurement of loads in the most challenging applications where headroom restrictions are a major factor. Constructed from high strength alloy steel and exposed to an array of testing during development, this impressive range of load cells is designed to work with industry standard shackles from manufacturers such as Crosby and Van Beest. Applications include weighing, lifting, force measurement and load monitoring of structures such as lighting trusses, hoist mountings and fly line tensioning.

The unique low headroom design combines the ability to lift loads with capacities up to 30t with state-of-the-art electronics, high accuracy and resolution of over 5000 divisions. Measured loads can be displayed with our Handheld plus digital display/controller or Windows PC Desktop Controller data logging software. A vast array of optional output formats are also available to include mV/V, RS-422, RS-485, utilising the ASCII, MODBUS, TRU and CAN-BUS protocols and analog outputs such as 4-20mA for connection to PLCs, Data Acquisition systems (DAQ) or other required instrumentation.

Usable cable length varies greatly, ranging from 10m/23ft to 1,500m/4900ft depending on output format.

FEATURES AND BENEFITS

• Low height

• Range from 1t to 30t

• High accuracy

• Lightweight and portable

• Accepts standard shackles

• Constructed from high strength alloy steel

• Huge range of output options

• Connects to Straightpoint data logging software

• Design validated by F.E.A.

APPLICATIONS

• Entertainment

• Rigging

• Low headroom applications

• High accuracy suspended weighing

• Proof test certificate

• Operator Manual

• Carry/Storage Case

Low Headroom Link specifications

2015年開始推出的全新產品，主要為滿足用戶節省凈空高度的實際作業需求。

此測力環主體結構由高強度合金鋼材質構成，內部有先進的電子元件作為核心部分，數據準確度和精確度都很高。監測數據可通過HHP手持有線顯示器，專門的DCP10M數據記錄軟件或SA-4320外部放大器進行查看。

為進一步方便用戶使用，還提供有多種可以選擇的數據輸出格式，包括使用ASCII/MODBUS/TRU/CAN-BUS協議的mV/v，RS-422和RS-485數字信號，以及各種模擬信號，如連接PLCs的4-20mA電流信號和DAQ。

數據線長度可按客戶要求的不同數據輸出格式確定，從10米到1500米。

產品特點

·           低凈高設計。

·           最大工作載荷從1噸到30噸。

·           數據準確度高。

·           自重小且攜帶方便。

·           可連接標準卸扣。

·           主體由高強度合金鋼材質構成，堅固耐用。

·           有多種數據輸出形式可以選擇。

·   需通過線纜連接HHP手持設備進行操控和讀值
